CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox

CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox Featured Image
  • CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox
  • CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox
  • CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox
  • CATERPILLAR E313B E313C E313D E313D2 E313F excavator spare parts Swing motor Planet Carrier Assembly Travel Reduction gearbox Swing Gearbox

Short Description:

Details table. Details: Part name: Model NO: CAT E313B E313C E313DE313D2 E313F COVER AS.FASTENER  DRIVE(COVER). SHAFT-SUN GEAR. PLANETARY GEAR. CARRIER  PLANETARY. LINK-SHAFT. GEAR PLANETARY(INCLUDES GEARS, BEARINGS & RINGS).  (INCLUDES CARRIER, BOLT & RINGS).  GEAR AS-SUN(INCLUDES GEAR AND RINGS).  GEAR PLANETARY(2ND STAGE). CARRIER GP(INCLUDES CARRIER, BOLT & RING).  GEAR AS-SUN(INCLUDES GEAR & RING).  GEAR-RING. BEARING. BRAKE -PARKING. Slewing Ring. Swing Planetary...


Product Detail

Product Tags

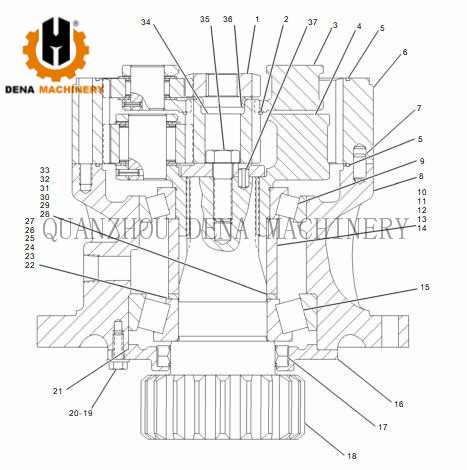

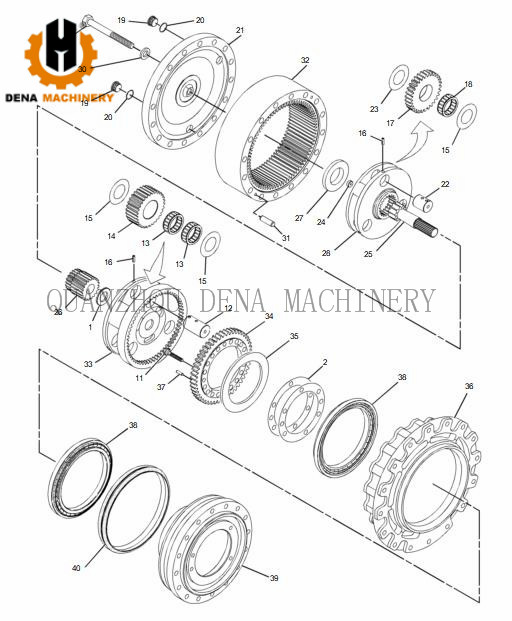

Details table.

Details: Part name:
Model NO: CAT E313B E313C E313DE313D2 E313F COVER AS.FASTENER  DRIVE(COVER).

SHAFT-SUN GEAR.

PLANETARY GEAR.

CARRIER  PLANETARY.

LINK-SHAFT.

GEAR PLANETARY(INCLUDES GEARS, BEARINGS & RINGS).

(INCLUDES CARRIER, BOLT & RINGS).

GEAR AS-SUN(INCLUDES GEAR AND RINGS).

GEAR PLANETARY(2ND STAGE).

CARRIER GP(INCLUDES CARRIER, BOLT & RING).

GEAR AS-SUN(INCLUDES GEAR & RING).

GEAR-RING.

BEARING.

BRAKE -PARKING.

Slewing Ring.

Swing Planetary Carrier Assembly.

Swing gearbox.

Travel gearbox.

Planet gear.

Planetary carrier.

SHAFT-PLANETARY
Size: Medium Excavator
Condition: New.
Warranty: Online.Support.Video technical support
Trademark: HLT or According to customer needs.
Transport Package: Carton/Fumigated.Wooden Case
Origin China.





Note.

Please refer to CAT Parts Catalog/Service Manual to check if your machine is suitable. If you are not sure about the suitability, you can provide us with the serial number of the CAT machine by email or phone to check them.

Part Number
114-8226 7I-1082 1R-5889 5K-8454 333-3051 296-6269
7I-7627 133-6780 095-1517 5P-8472 095-0879 165-5787
093-6087 7I-1084 7I-1129 6T-2173 333-3058 095-0891
108-9188 7I-1085 096-3978 6V-3298 333-3059 165-5788
7I-7787 129-8025 7I-1131 7X-0366 7X-2619 296-6268
7I-7788 1R-5875 132-7725 8J-1665 353-0534 165-5790
7I-7789 129-8026 6V-8399 8T-4223 353-0535 7Y-0225
7I-7791 095-7383 9S-8005 8T-4896 353-0536 094-0611
096-8056 095-7386 7I-1137 8T-4994 353-0537 165-5792
114-8232 095-1578 7I-1138 8T-8917 353-0538 165-5793
7I-7782 096-4377 095-1594 9H-0846 353-0539 165-5794
7I-7783 1R-5883 095-1789 9S-4185 353-0540 165-5795
7I-7784 096-1521 7I-1277 352-8148 353-0541 8T-7929
7I-7786 096-3785 336-7876 094-0580 353-0542 095-1299
8C-3347 096-3786 20R-5590 094-1528 353-0543 165-3892
114-8223 096-3787 1M-7911 165-5854 095-0929 165-5796
093-6088 096-3788 1M-7912 357-1828 507-1118 165-5797
7I-7676 096-1522 3T-5923 165-5856 532-9411 165-5800
093-6089 1R-5881 5F-2465 357-1829 532-9412 210-3530
7I-7628 7I-1103 6V-0662 165-5859 532-9415 114-1539
7I-7625 8T-6759 6V-0663 165-5860 532-9416 296-6220
7I-7632 7I-1110 6V-0664 165-5864 532-9417 210-3531
7I-7633 095-0966 6Y-1336 165-5866 532-9418 174-4874
7I-7634 4I-9426 20R-1870 165-5867 532-9419 507-1116
7I-7635 7I-1109 6Y-6277 165-5868 532-9420 539-2437
7I-7636 7I-1104 5P-1606 191-0862 532-9421 539-2438
7I-7626 095-1575 7G-5831 204-1086 532-9422 539-2439
099-0235 3Y-9267 7G-5832 218-4247 532-9423 539-2440
099-0233 151-9685 7T-2524 357-1827 532-9424 539-2441
114-8225 096-1445 7T-2530 310-4980 532-9425 539-2442
8T-4195 095-0882 7T-9526 332-7484 532-9426 539-2443
8T-4121 7Y-4277 7T-9527 332-7485 532-9427 539-2444
1U-8846 114-8229 8E-7532 332-7486 532-9428 539-2445
7I-7638 095-1585 8E-7533 332-7487 532-9429 539-2446
7I-7639 096-1519 8E-7534 3E-2338 532-9430 539-2447
7I-7640 095-7381 9W-3232 6V-7726 093-1322 539-2448
7I-7641 095-7380 9W-3372 7M-8485 095-1688 539-2449
7I-7642 095-7382 9W-3373 8T-1158 105-3478 539-2450
7I-7643 1R-5880 9W-3377 8T-4136 532-9433 539-2451
7I-7644 1R-5879 9W-3378 8T-4185 8T-4179 539-2452
7I-7645 7I-1121 9W-9392 9X-2027 350-0452 539-2453
7I-7646 7I-1122 20R-1878 333-3073 165-5785 539-2454
7I-7647 7I-1123 9W-9393 191-2602 096-1773 539-2455
7I-7648 7I-1125 9W-9394 191-2605 096-1774 539-2456
7I-7649 1R-5874 9X-7363 191-2608 096-1775 539-2457
093-8768 1R-5870 394-6342 191-2609 096-1776 539-2458
114-8224 114-1466 157-5075 191-2610 096-1777 095-0922
093-6098 095-0687 318-6248 191-2611 096-1778 378-9600
095-0893 133-6753 034-3557 191-2613 096-1779 229-1078
151-9690 6V-8200 2S-4078 199-4627 096-1780 3B-8489
151-9689 7I-1141 3D-2895 333-3048 096-1781 148-4685
114-8231 1R-5891 3K-0360 333-3049 227-6034 378-9598
1R-5871 5P-2568 5F-7054 333-3050 165-5786 296-6269

Our Services

1. Standard product design

2. High quality material selection

3. Advanced imported manufacture & testing equipment

4. Advanced manifacturing process and production technology

5. in the line with global standards

6. By long time testing, proved to be good condition

Transport& packaging.

We will send with wooden case by express, air, sea or land as your request.

*If less than 45KG, I advise express like DHL, FEDEX, TNT...

*If 45-300KG, I advise air to airport.

*If more than 300KG, I advise sea to seaport and land to city.

We have specialized in producing excavator parts for many years, and we look forward to working with you.

FAQ

Q1. You are a trader or a manufacture?

Our company is a industry and trade integration enterprises



Q2.What's the payment you will accept ?

We usually accept T/T or L/C. other terms also could be negotiated.



 Q3.how long it will take to delivery to my address?

  30-40 days after payment made.



Q4.How can I be sure the excavator parts will fit my excavator?

     Give us correct model number/machine serial number/any numbers on the parts itself.Or measure the parts

  give us dimension or drawing.

why choose us?

   Our staff of engineers offers high-valued design guidance to assure product performance and efficiency.And our strict adherence  rigorous quality control and tolerance standards lead to easier assembly of finished components at your facility.
